◆ Tactile feel, no 'click' sound

◆ No noise / spring sound during operation

◆ Less shaking of the switch due to the cover and the base firm fastening;

◆ Moderate tactile, suitable for gaming and typing

◆ Built with quality elastic material and double gold contact structure, the duration is up to 100 million strokes, which is twice that of ordinary mechanical switches

◆ The upper cover and the base are hollowed out, leaving rooms for SMD lamps and the DIP lamps

◆ Built on fully automatic assembly and testing integrated lines, good product consistency

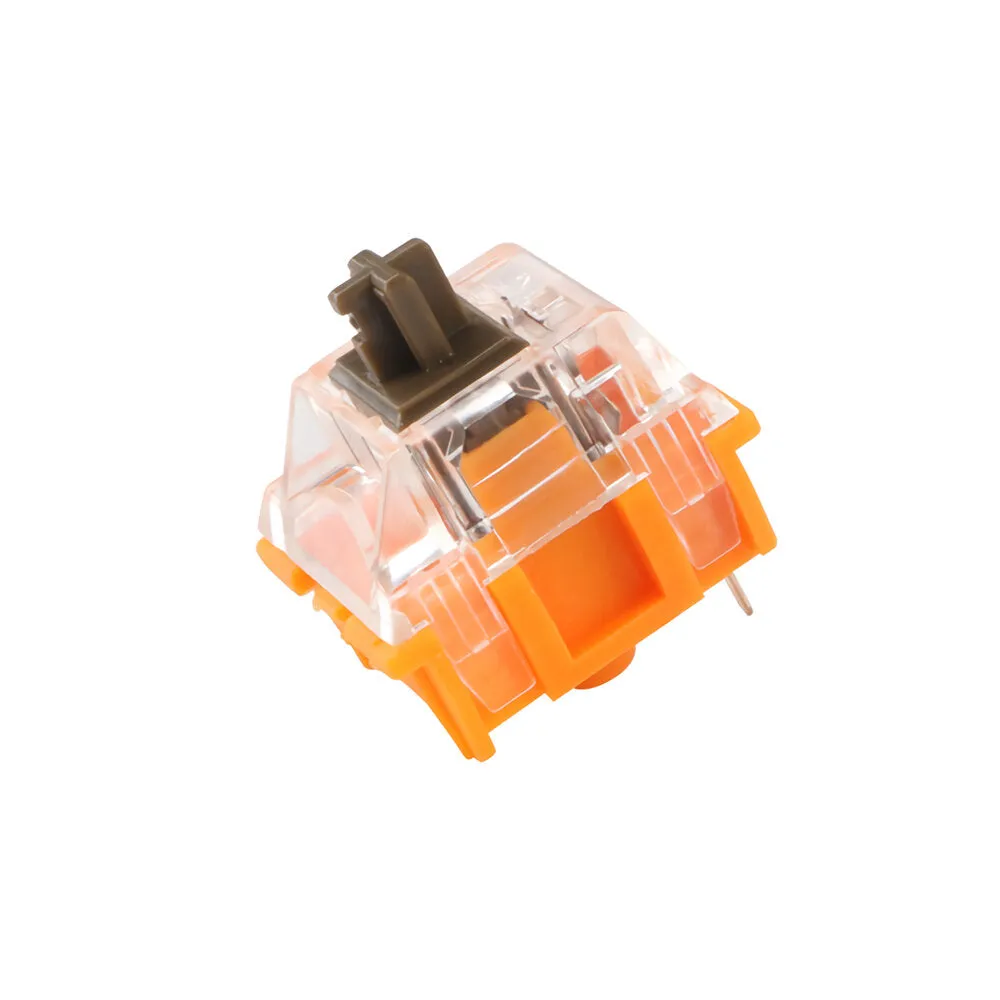

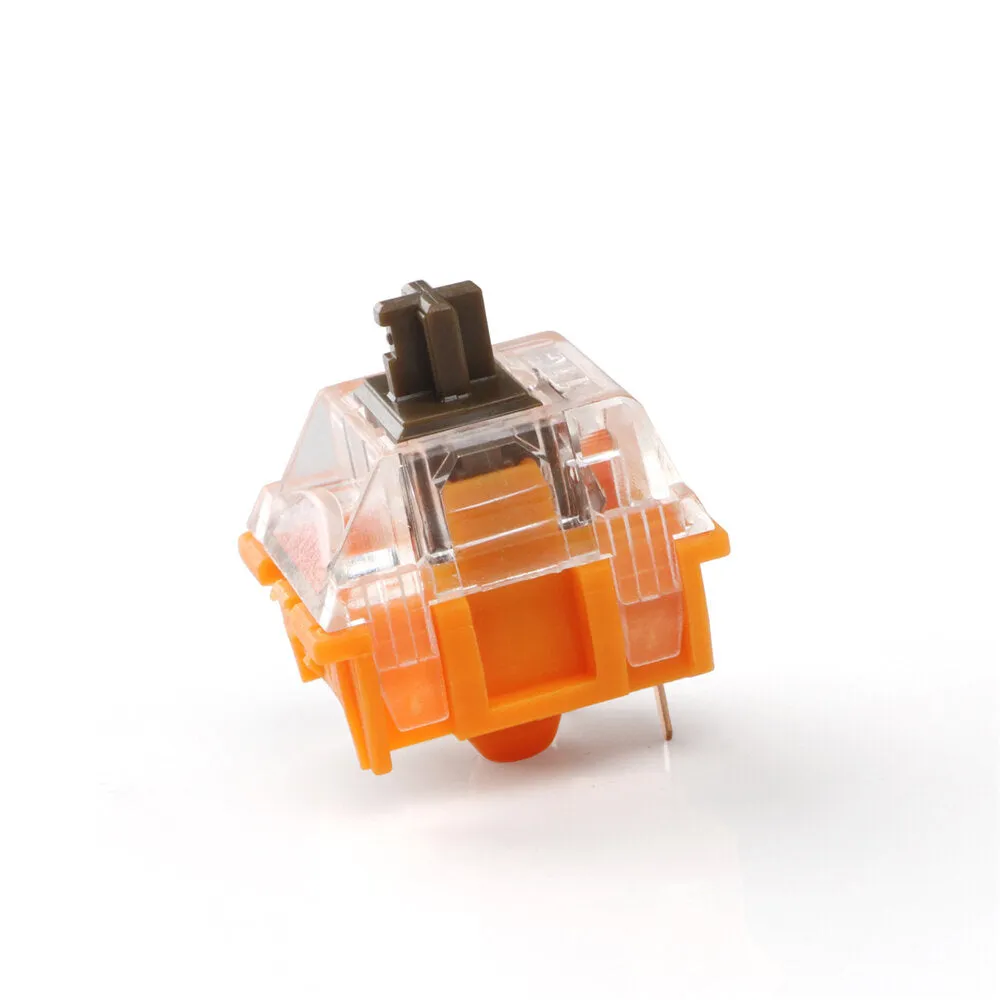

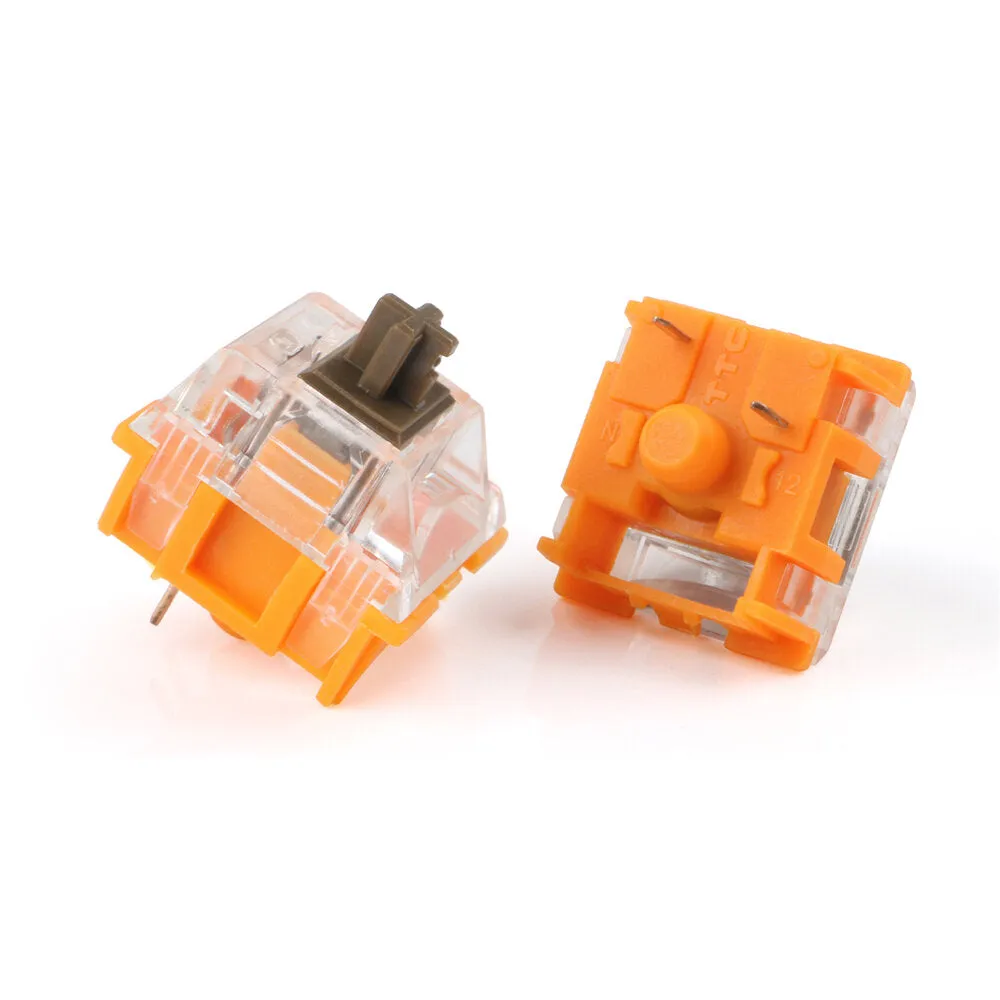

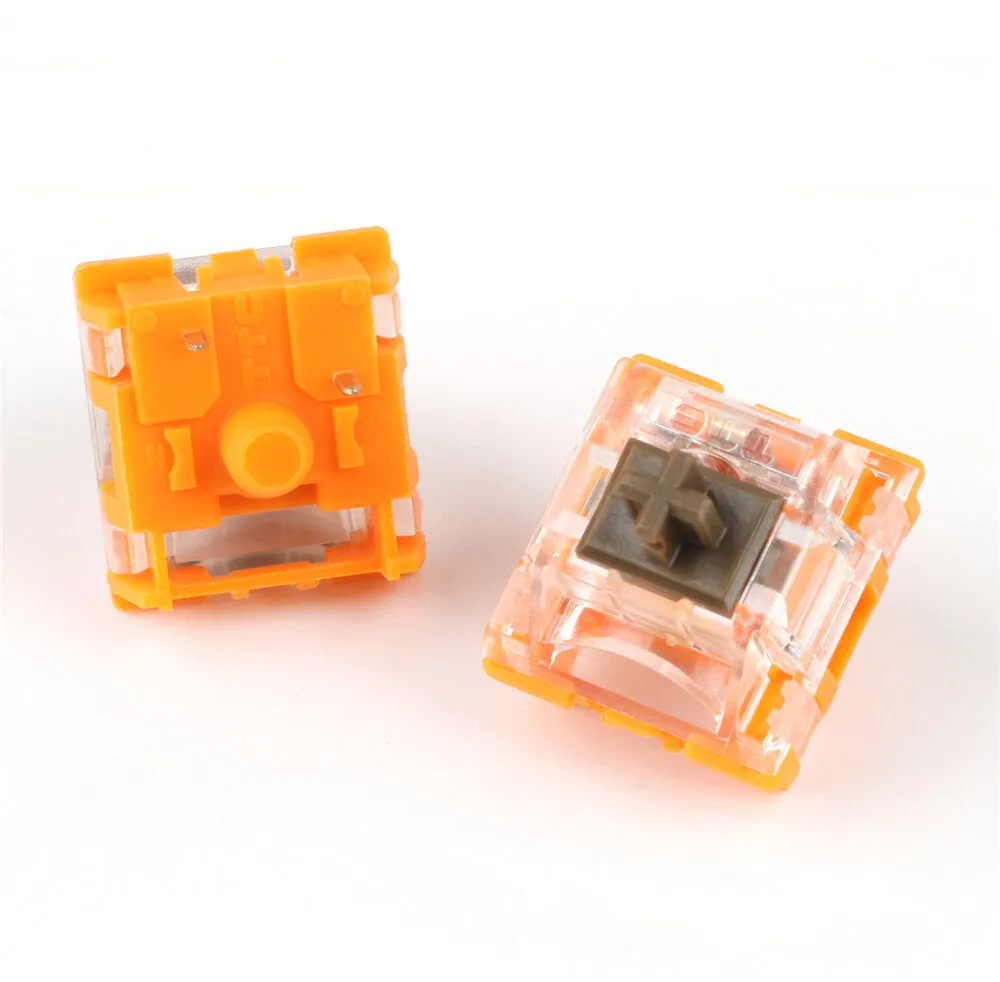

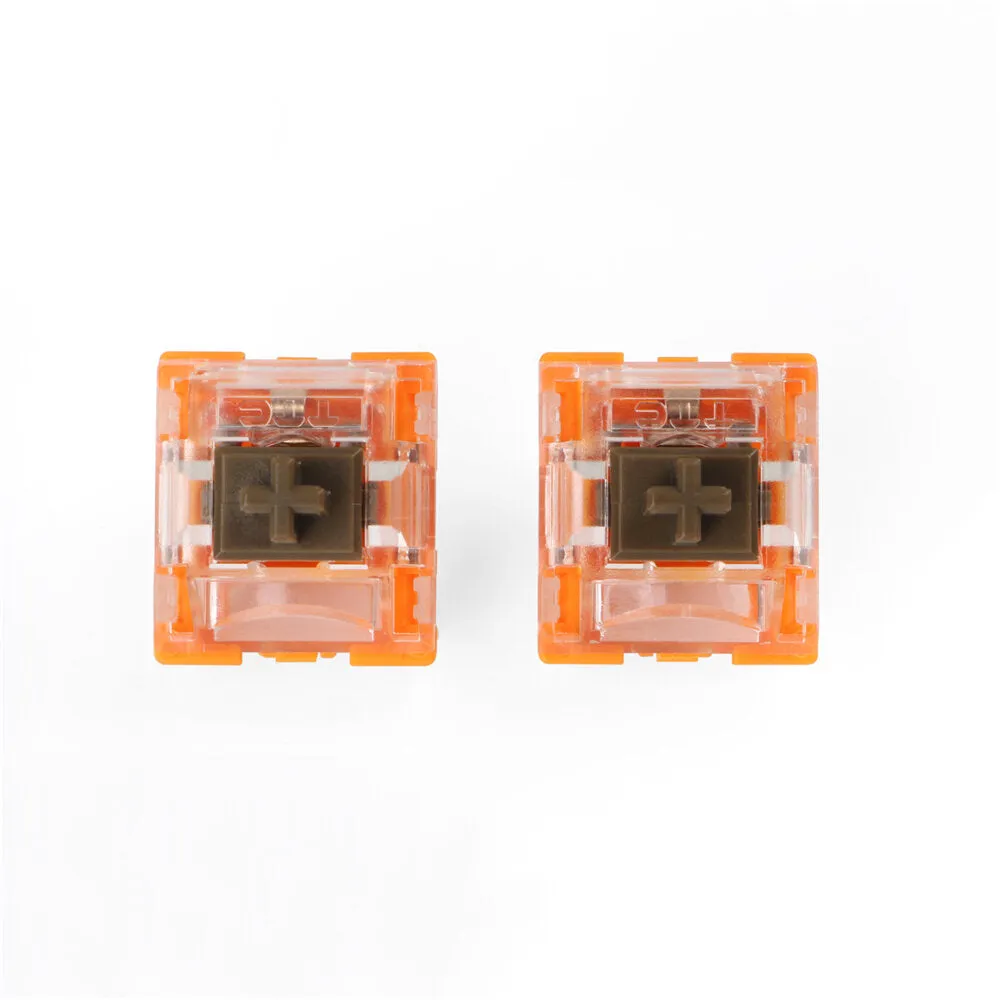

• Switch type: Tactile, soundless

• Cover: Semi transparent golden

• Base: Light golden

• Button: Brown

• Contact poles: unipolar contact

• Contact material: gold alloy

• Operating force: 55 ± 5gf

Pre-travel: 0.9±0.3mm

Total travel: 2.0±0.4mm

• Duration: 100 million key strokes

• Switching voltage: 2-12V DC

• Switching current: 10μA-10mA DC

• Contact resistance: 500mΩ Max

• Insulation resistance: 100MΩ Min

• Operating temperature range: -25 ℃ to 70 ℃ ( -13°F~158°F )

1 * 70/110 Pcs/pack TTC Gold Brwon Switch
