One of the best ways to add accessories to your vehicle without having to add a switch every time.

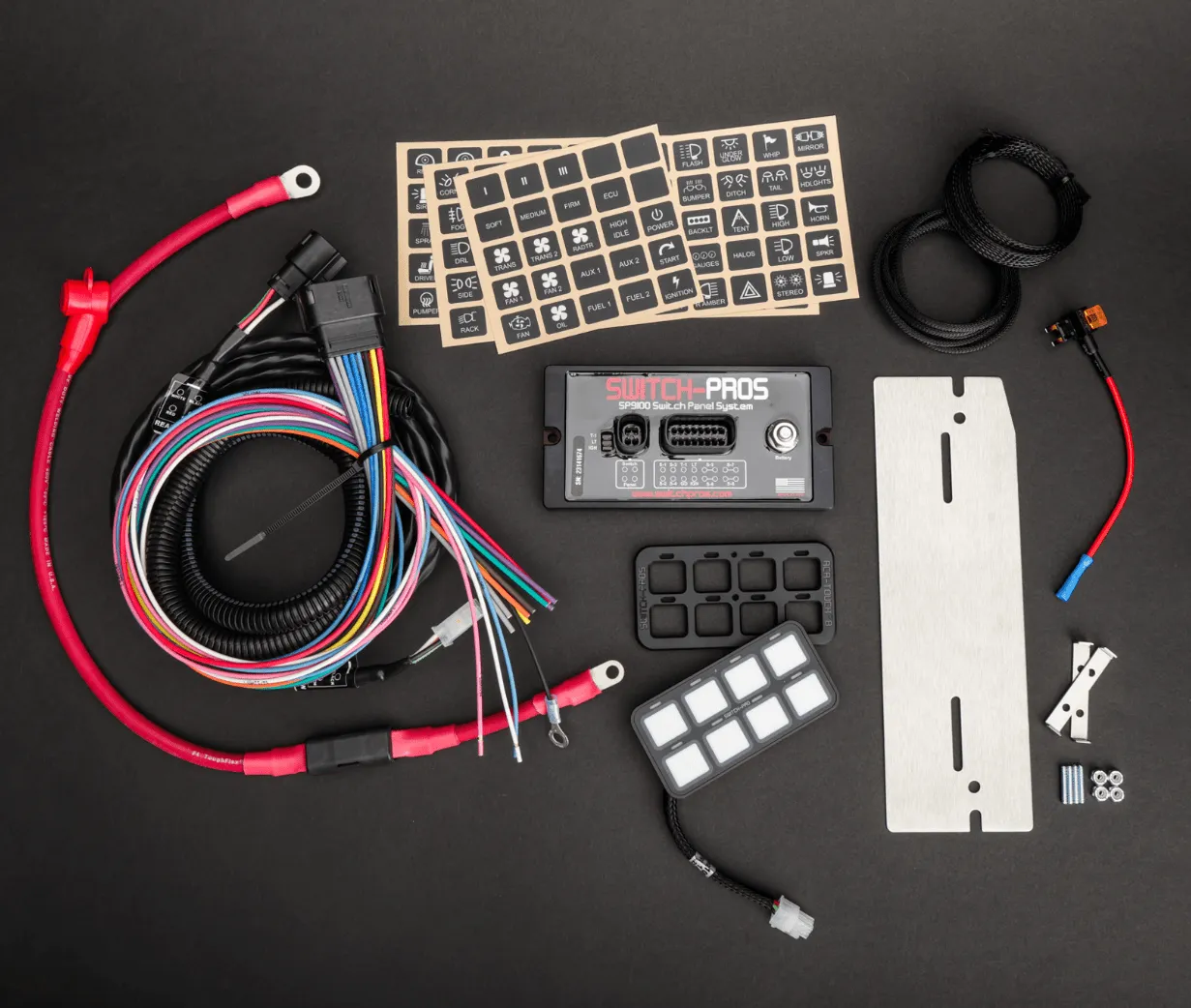

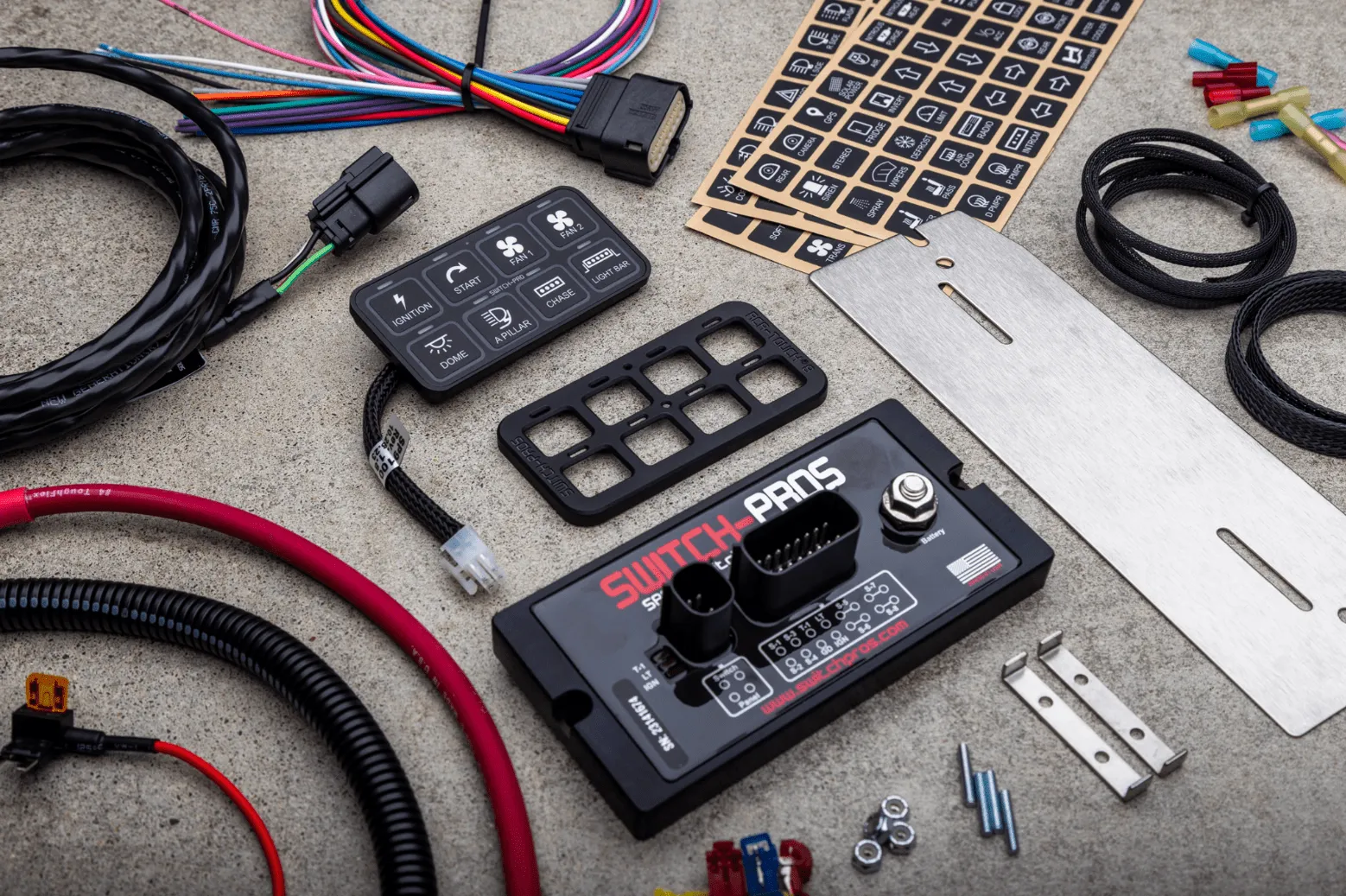

Details:

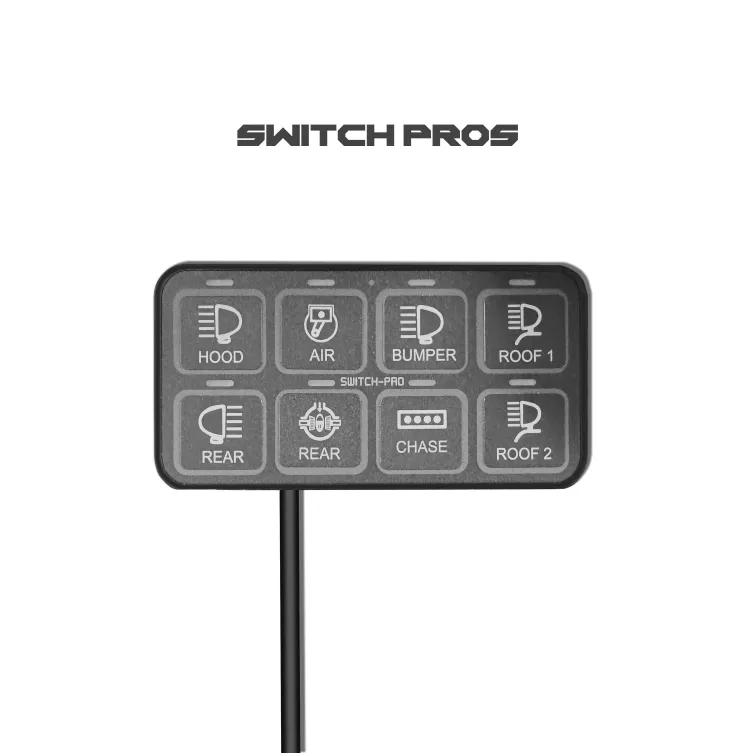

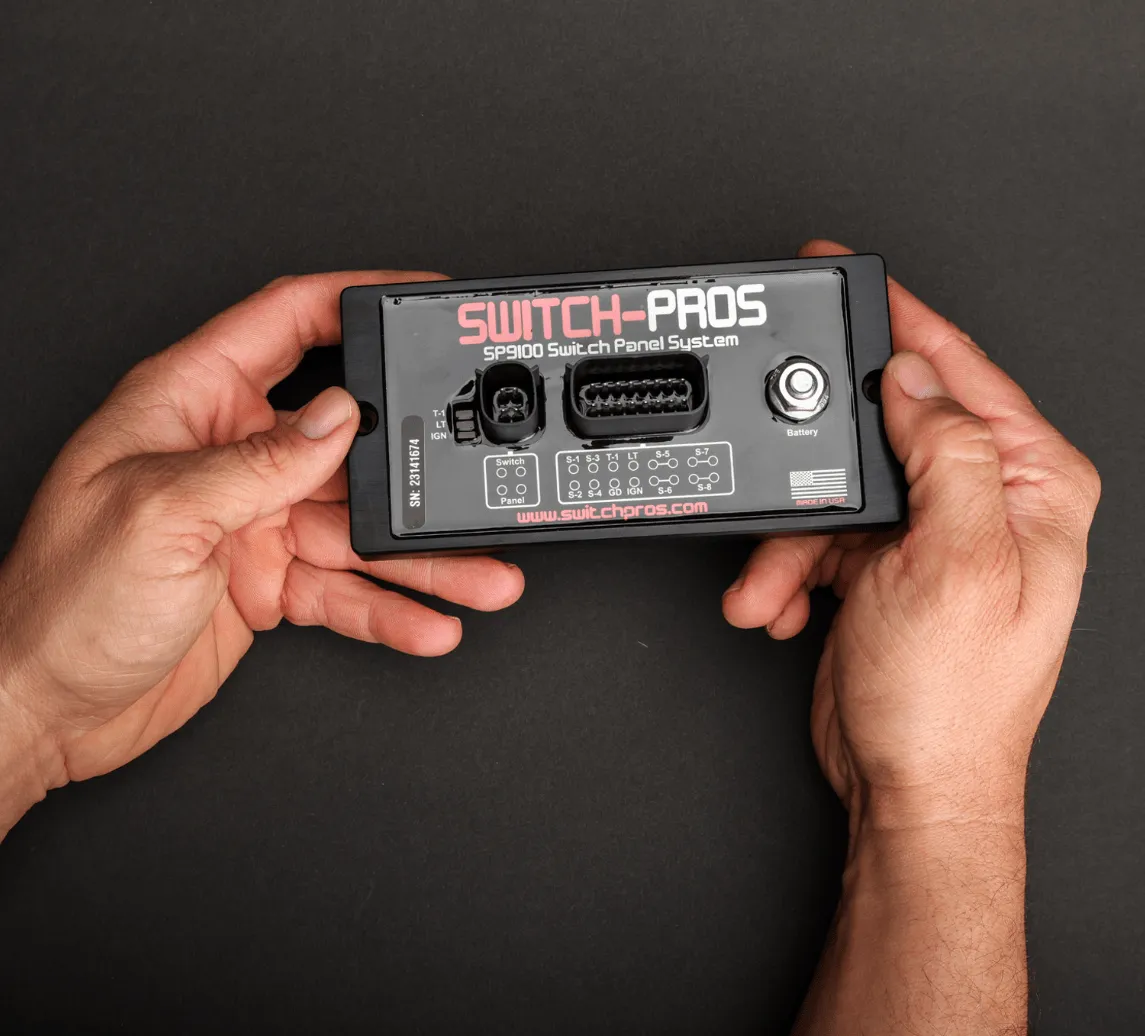

• Switch Panel and Power Module

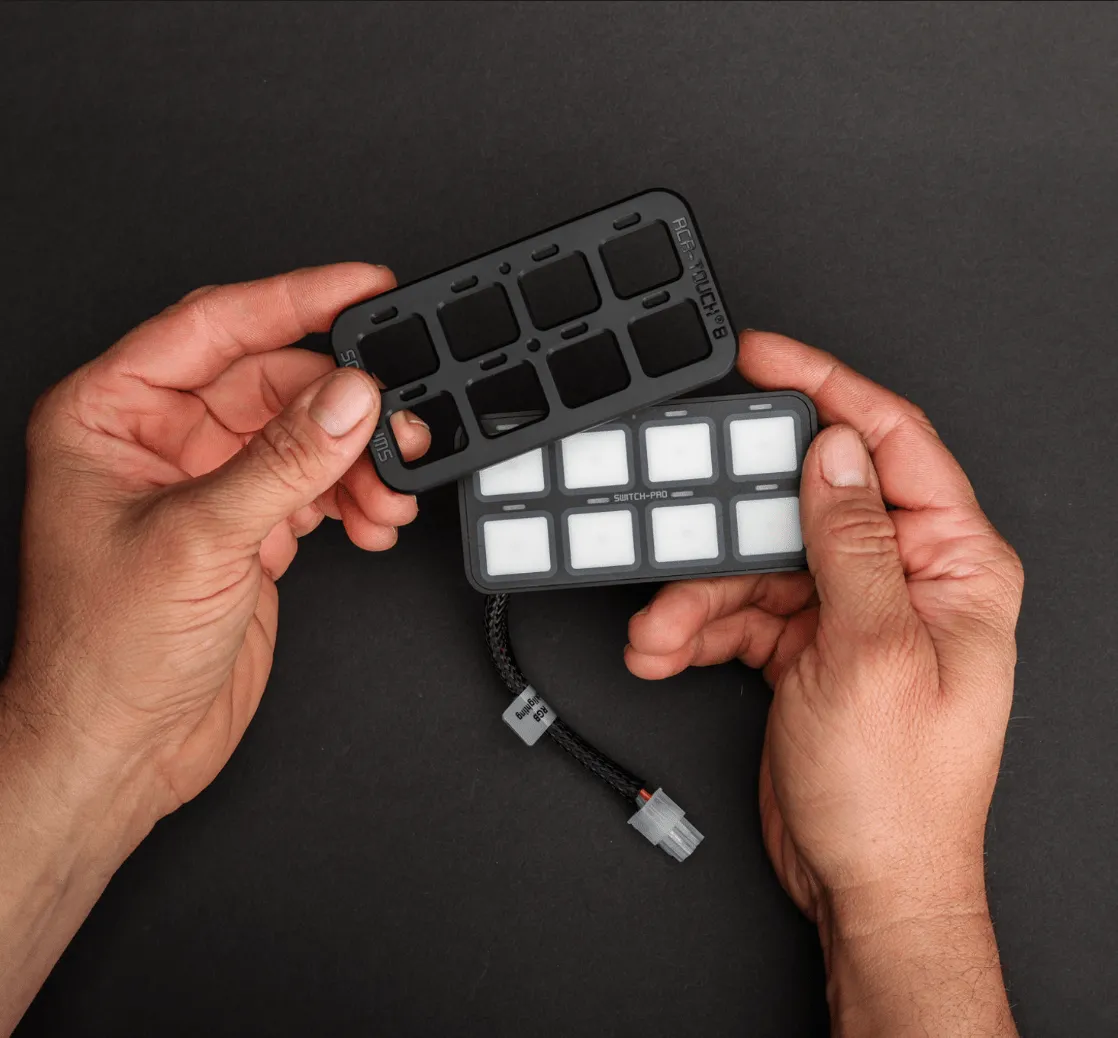

• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse

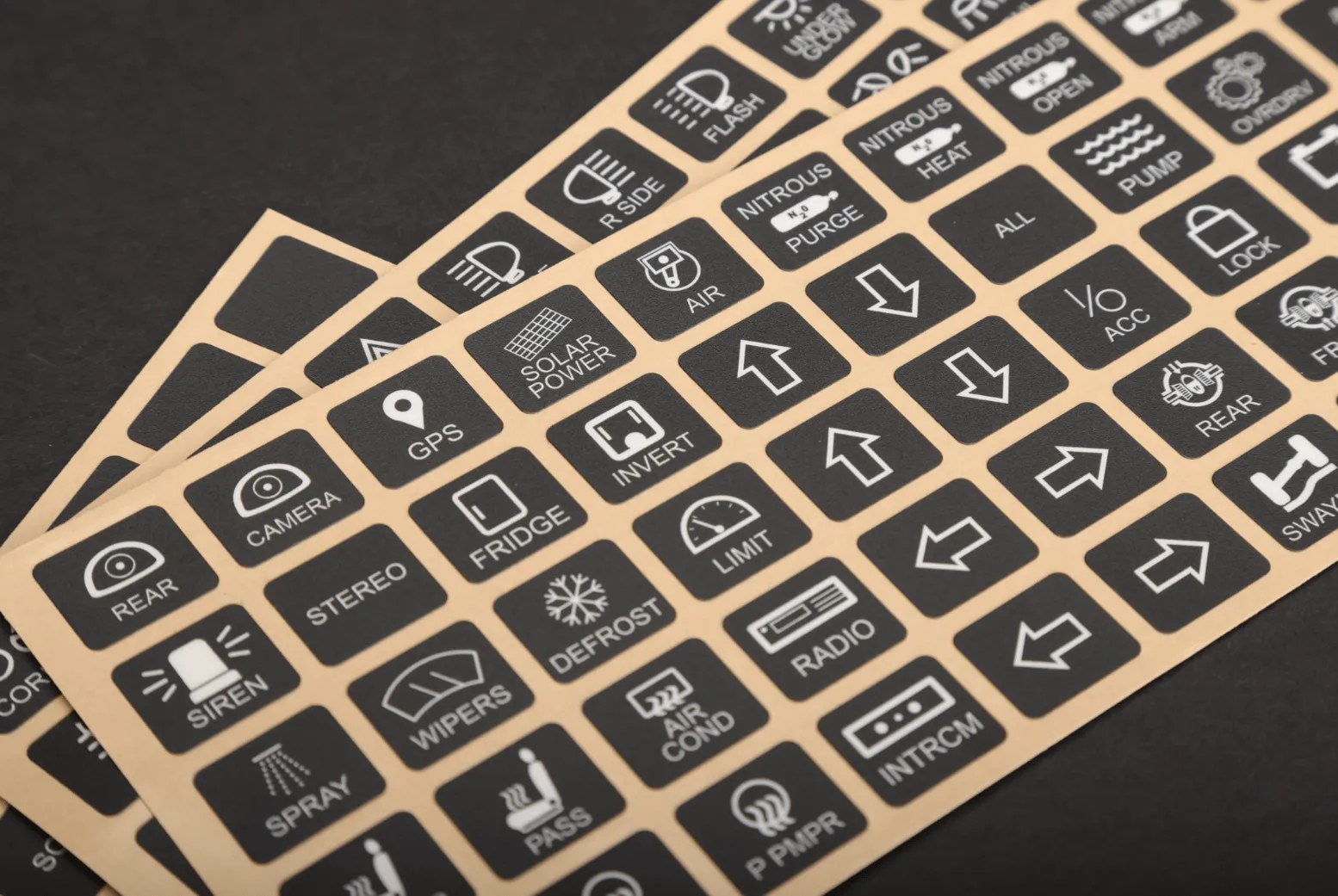

• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 16-pin color-coded output harness
• Detailed installation Guide

Features

• RGB Backlighting

• Built-in Bluetooth module for use with free Switch-Pros App

• Program and operate your panel from any device with access to the iOs or Google Play Store

• Battery Voltage Readout on App screen

• Orange LED switch indicators

• LED Input Status Indicators for easy troubleshooting on power module

Specifications

• 125amp capacity with 8 outputs
• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H
• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with the ability to turn up to 7 other switches On AND Off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch Activation
• Automatic Power-Up upon vehicle start-up
• Time Delay-off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module

Proudly made in the USA
