Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Color | Red |
| Current, Ratings | 20 mA (Typ.) |
| Diameter, Lamp | 0.275 in. |
| Diameter, Mounting Hole | 0.191 to 0.196 in. |
| Dimensions | 0.438" L x 0.275" Dia. |
| Finish | Zinc |
| Housing Material | Brass |
| Lamp Type | LED |
| Length, Lead | 6 in. |
| Mounting Hole Size | 0.19 in. |
| Product Header | L58 Series Threaded LED Indicator Light |
| Series | |
| Size, Thread | 10-32NF-2A |
| Supply Voltage | 24 VDC |
| Termination | Lead Wires |
| Thread Size | 10-32NF-2A |
| Type | General Purpose |
| Voltage Rating | 24 V |
| Voltage, Operating | 24 VDC |
| Wire Size | 24 AWG |
Overview

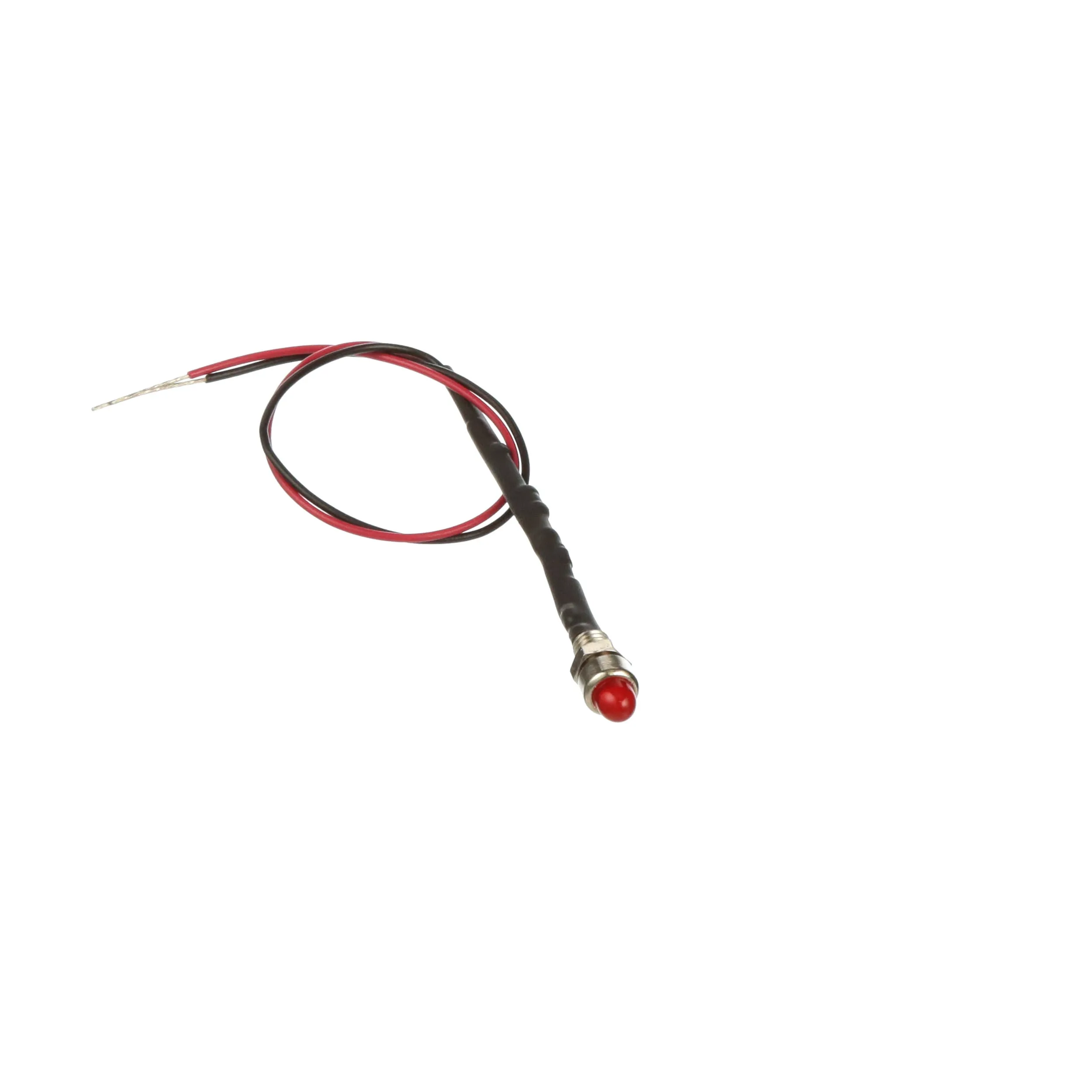

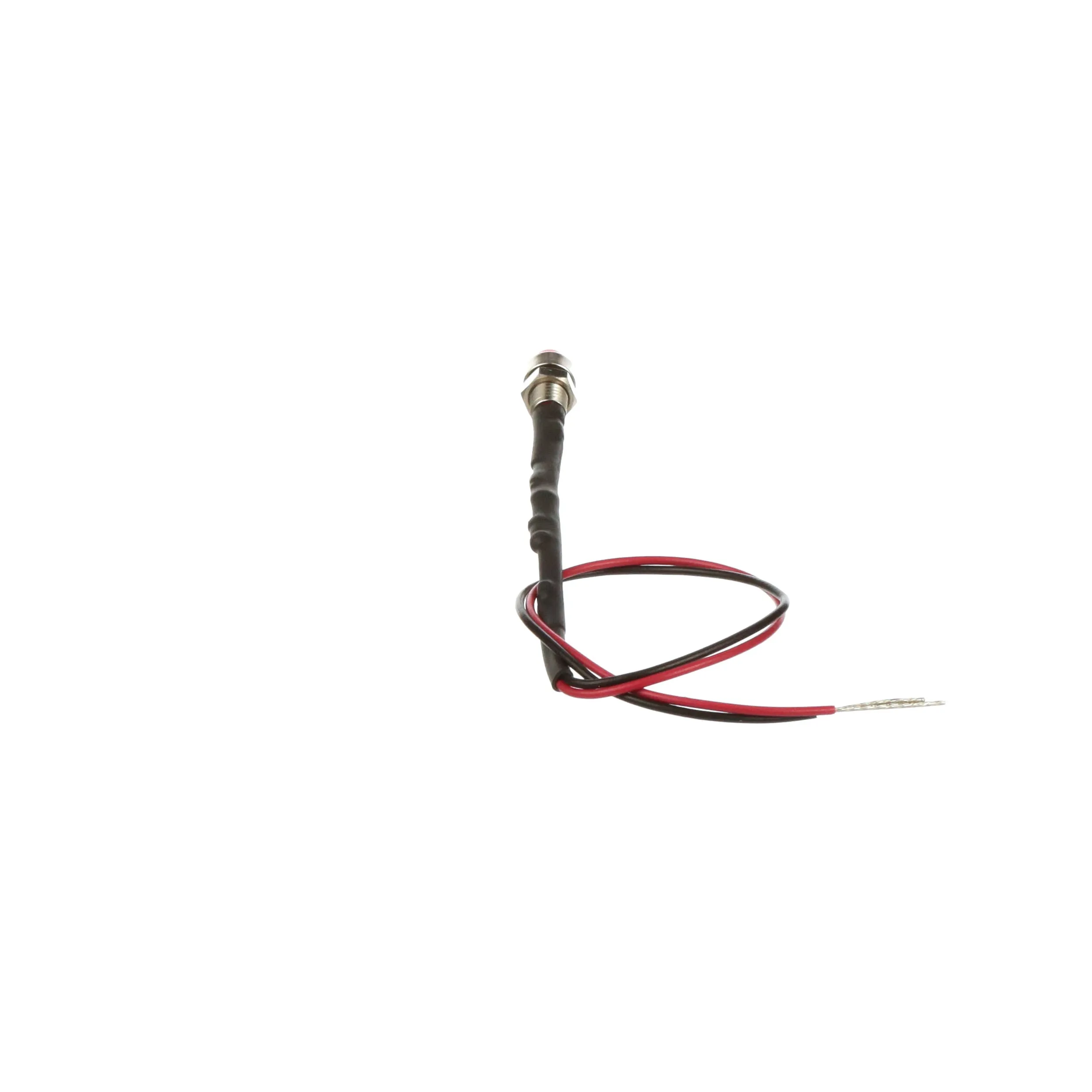

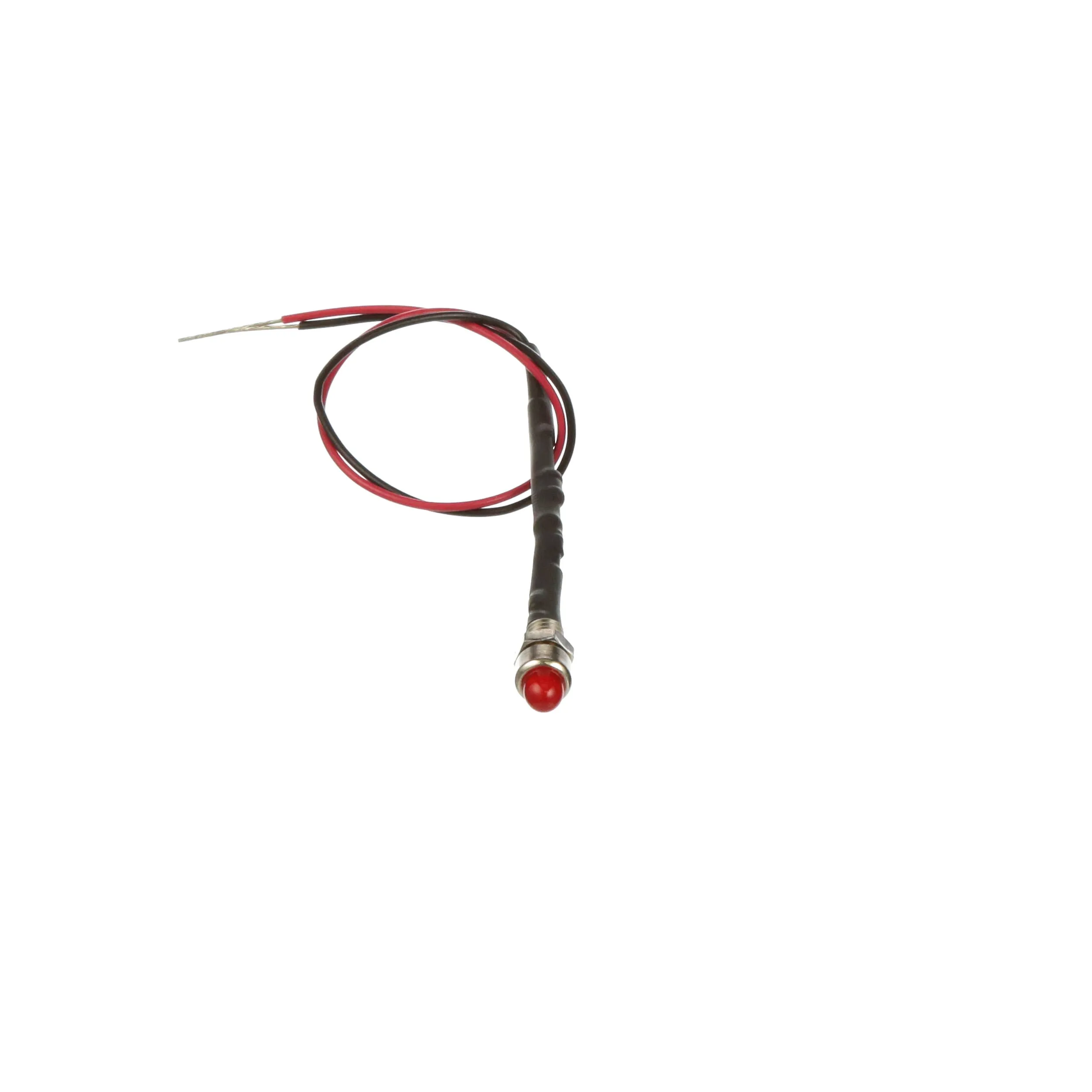

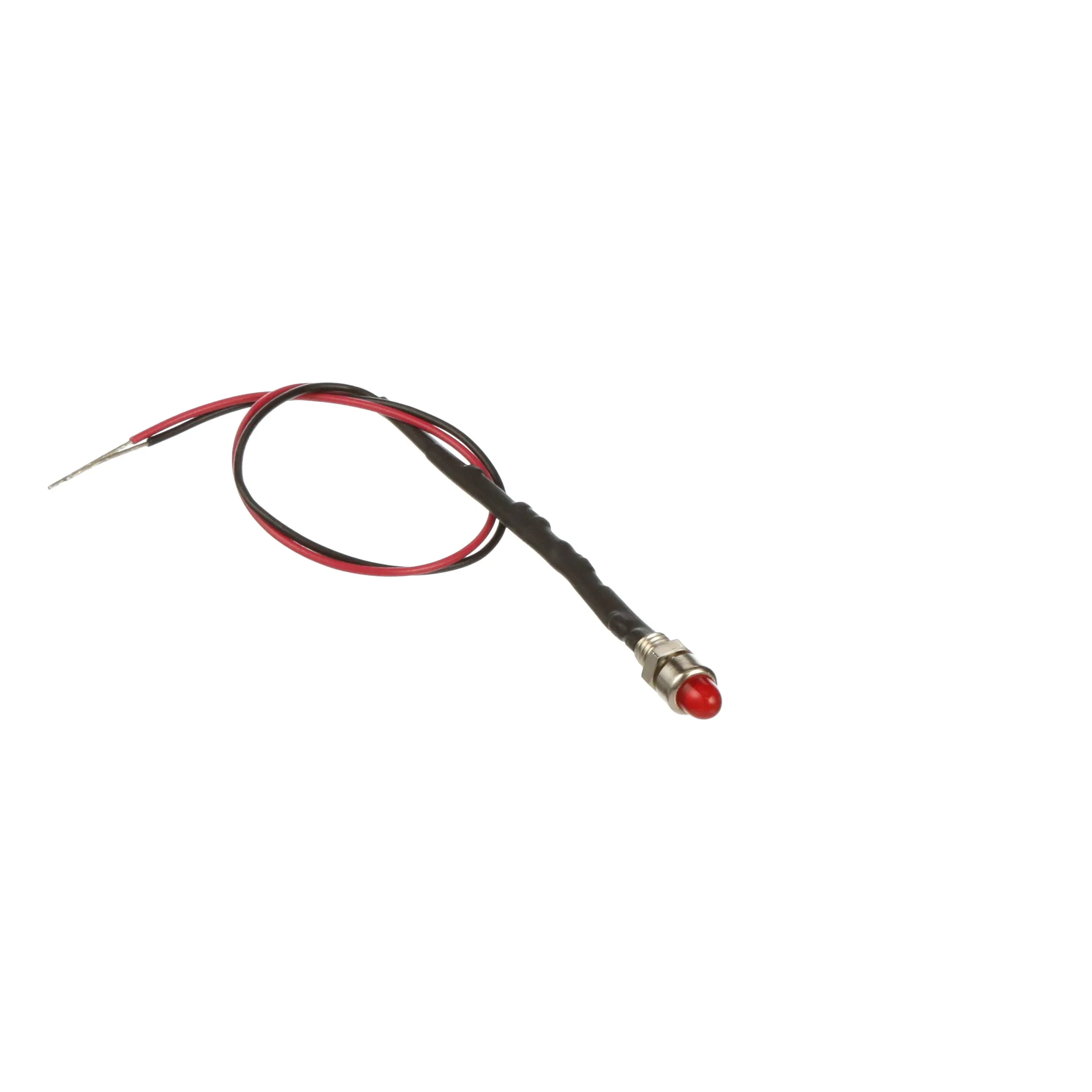

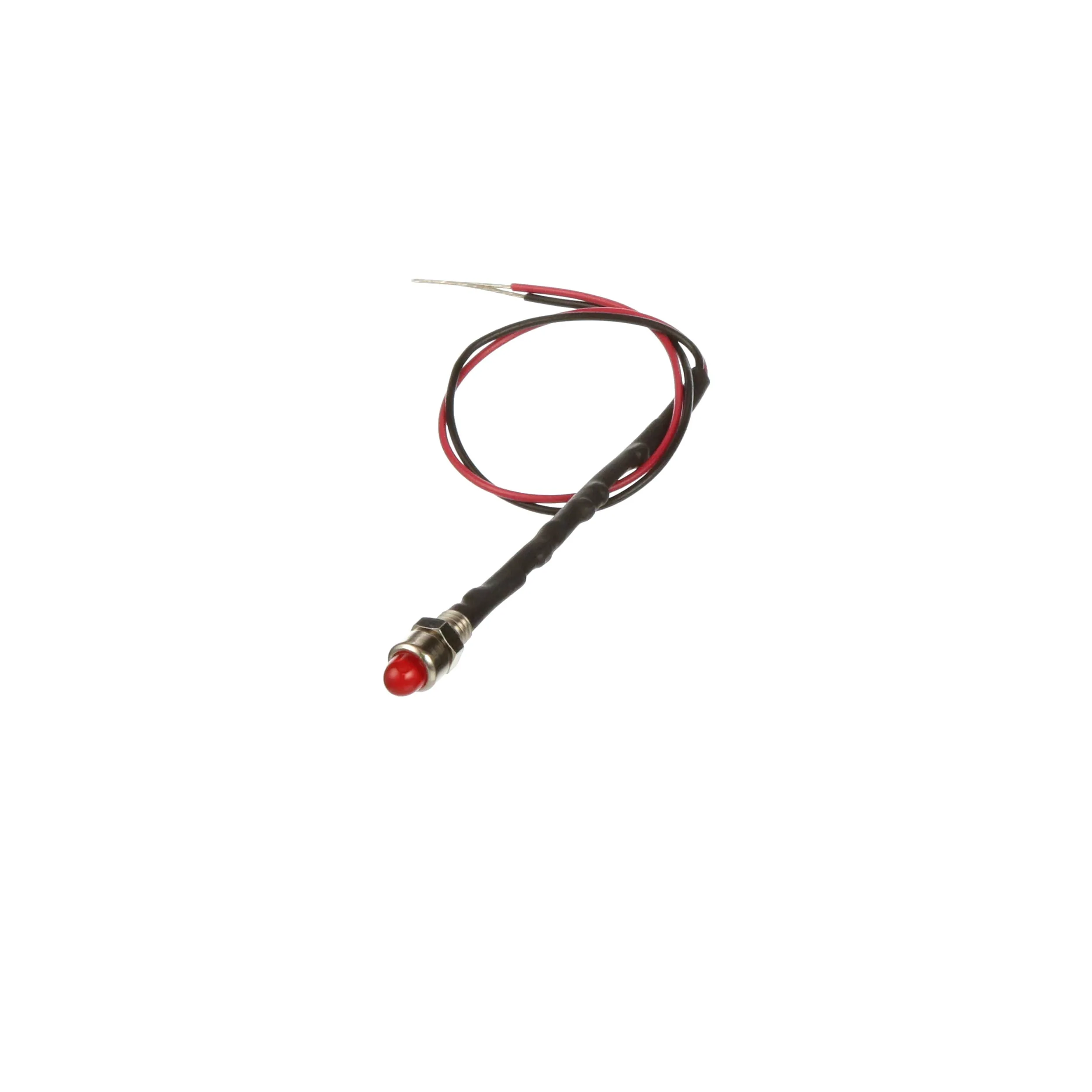

Threaded Indicating LED, Red Color, Zinc Plated Brass Housing
Features diffused (wide viewing angle) LED; built-in integral bezel. Termination: 6" color-coded wire leads, red = anode ( ), black = cathode (-). Panel Range: 0.187" (4.76 mm) max. Mounting Hole: 0.191" to 0.196". Clear LEDs are also available. Other Options Available: 2 volt and 6 volt LED indicators.
Tapered, splashproof indicator.
